Armis

Armis is an asset management tool that scans your hosts and cloud resources to generate alerts and security findings. You can bring alert, cloud resource, host, and vulnerability data from Armis into Brinqa to construct a unified view of your attack surface, thus strengthening your cybersecurity posture.

This document details the information you must provide for the connector to authenticate with Armis and how to obtain that information from Armis. See create a data integration for step-by-step instructions on setting up the integration.

Required connection settings

When setting up a data integration, select Armis from the Connector drop-down. If you cannot find the connector in the drop-down, make sure that you have installed it first. You must provide the following information to authenticate Armis with Brinqa:

Server URL: Your organization's Armis Server URL. The default URL format is https://<tenant>.armis.com, where <tenant> is your organization's tenant name. For example, if your tenant name is brinqa, the URL would be https://brinqa.armis.com.
API Secret Key: The API key associated with the Armis account, which must have, at the very least, the Read Only role assigned to it. This is considered the minimum role required to read and retrieve data from the Armis API.
Sample cURL Command
curl -X GET "https://api.armis.com/v1/search" \ -H "x-api-key: YOUR_API_KEY"

Generate an Armis API key

For the Armis connector to use the Armis API, you must provide an API key. To generate a new API key, follow these steps:

Log in to your organization's Armis server as an administrator.

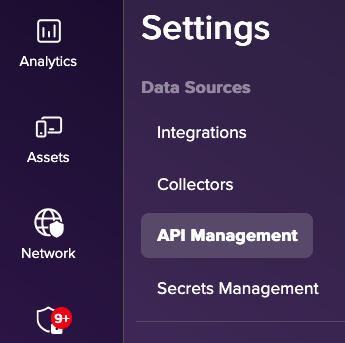

Navigate to Settings > API Management.

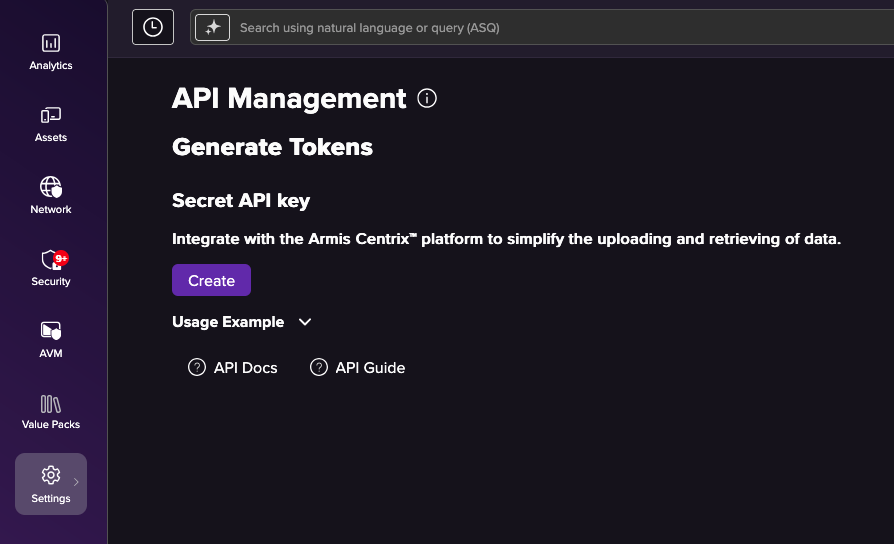

Click Create.

This page also includes links to the Armis API Docs and API Guide. These links are located under the Usage Example section.

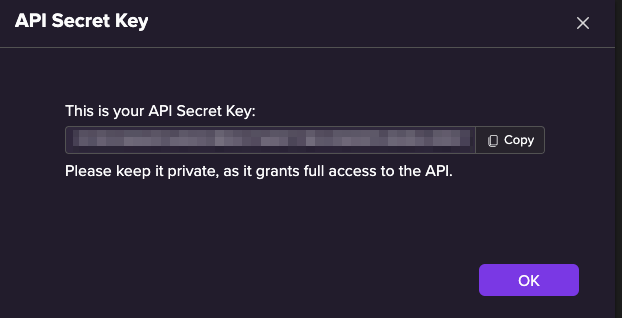

Your new API key displays. While you can come back to this page and obtain your API key, it is recommended that you handle it with caution by storing it in a safe and secure location.

note

If you do not have the permissions to create an API key, contact your Armis administrator. For additional information, see Armis documentation.

Additional settings

The Armis connector contains additional options for specific configuration:

Page size: The maximum number of records to get per API request. The default setting is 100. It is not recommended to go over 100.
Maximum retries: The maximum number of times that the integration attempts to connect to the Armis API before giving up and reporting a failure. The default setting is 5.
Skip certificate verification: Select this option to allow for untrusted certificates.

Types of data to retrieve

The Armis connector can retrieve the following types of data from the Armis API:

Table 1: Data retrieved from Armis

Connector Object	Required	Maps to Data Model
Armis Alert	Yes	Alert
Armis Alert Definition	Yes	Alert Definition
Armis Cloud Resource	Yes	Cloud Resource
Armis Host	Yes	Host
Armis Vulnerability	Yes	Vulnerability
Armis Vulnerability Definition	Yes	Vulnerability Definition

info

For detailed steps on how to view the data retrieved from Armis in the Brinqa Platform, see How to view your data.

Attribute mappings

Expand the sections below to view the mappings between the source and the Brinqa data model attributes.

Armis Alert

Table 2: Armis Alert attribute mappings

Armis Field Name	Maps to Brinqa Attribute
alert.activityIds	activities
alert.alertId	uid
alert.deviceIds	targets
alert.status	providerStatus
alert.status - category of normalized value	statusCategory
alert.status - normalized	sourceStatus
alert.status - normalized	status
alert.time	sourceLastModified
alert.title or alert.alertId	name

Armis Alert Definition

Table 3: Armis Alert Definition attribute mappings

Armis Field Name	Maps to Brinqa Attribute
alert.severity	sourceSeverity
alert.title	name
alert.type	categories
getFindingSeverityScore(normalizedSeverity)	severityScore
normalizeFindingSeverity(alert.severity)	severity
uid	uid

Armis Cloud Resource

Table 4: Armis Cloud Resource attribute mappings

Armis Field Name	Maps to Brinqa Attribute
device.category / device.type	categories
device.firstSeen	firstSeen
device.id	uid
device.ipAddress	ipAddresses
device.lastSeen	lastSeen
device.macAddress	macAddresses
device.manufacturer	manufacturer
device.model	model
device.name	name
device.name - normalized	hostnames
device.operatingSystem / device.operatingSystemVersion	operatingSystem
device.riskLevel	riskLevel
device.sensor.name	sensor
device.site.name	site
device.tags	tags
device.type	deviceType
device.user	user

Armis Host

Table 5: Armis Host attribute mappings

Armis Field Name	Maps to Brinqa Attribute
device.category / device.type	categories
device.firstSeen	firstSeen
device.id	uid
device.ipAddress	ipAddresses
device.lastSeen	lastSeen
device.macAddress	macAddresses
device.manufacturer	manufacturer
device.model	model
device.name	name
device.name - normalized	hostnames
device.operatingSystem / device.operatingSystemVersion	operatingSystem
device.riskLevel	riskLevel
device.sensor.name	sensor
device.site.name	site
device.tags	tags
device.type	deviceType
device.user	user

Armis Vulnerability

Table 6: Armis Vulnerability attribute mappings

Armis Field Name	Maps to Brinqa Attribute
vulnerabilityMatch.confidenceLevel	confidenceLevel
vulnerabilityMatch.cveUid	type
vulnerabilityMatch.cveUid + "_" + vulnerabilityMatch.deviceId	uid
vulnerabilityMatch.cveUid + "_" + vulnerabilityMatch.deviceId	name
vulnerabilityMatch.deviceId	targets
vulnerabilityMatch.firstDetected	firstFound
vulnerabilityMatch.lastDetected	lastFound
vulnerabilityMatch.matchCriteriaString	matchCriteria
vulnerabilityMatch.status	providerStatus
getFindingStatusCategory(normalizeFindingStatus(vulnerabilityMatch.status))	statusCategory
normalizeFindingStatus(vulnerabilityMatch.status)	sourceStatus
normalizeFindingStatus(vulnerabilityMatch.status)	status

Armis Vulnerability Definition

Table 7: Armis Vulnerability Definition attribute mappings

Armis Field Name	Maps to Brinqa Attribute
vulnerability.affectedDevicesCount	affectedDeviceCount
vulnerability.attackComplexity	cvssV3Ac
vulnerability.attackVector	cvssV3Av
vulnerability.availabilityImpact	cvssV3Ai
vulnerability.botnets	botnets
vulnerability.cisaDueDate	cisaDueDate
vulnerability.commonName	name
vulnerability.confidentialityImpact	cvssV3Ci
vulnerability.cveUid	cveIds
vulnerability.cveUid	cveRecords
vulnerability.cveUid	uid
vulnerability.cvssScore	cvssV3BaseScore
vulnerability.description	summary
vulnerability.epssPercentile	epssPercentile
vulnerability.epssScore	epssScore
vulnerability.exploitabilityScore	exploitabilityScore
vulnerability.firstReferencePublishDate	firstRefPublishDate
vulnerability.firstWeaponizedReferencePublishDate	firstWeaponizedRefPublishDate
vulnerability.hasRansomware	hasRansomware
vulnerability.impactScore	impactScore
vulnerability.integrityImpact	cvssV3Ii
vulnerability.isWeaponized	isWeaponized
vulnerability.latestExploitUpdate	latestExploitUpdate
vulnerability.numOfExploits	numOfExploits
vulnerability.numberOfThreatActors	numOfThreatActors
vulnerability.orgPriority	orgPriority
vulnerability.privilegesRequired	cvssV3Pr
vulnerability.publishedDate	publishedDate
vulnerability.reportedByGoogleZeroDays	reportedByGoogleZeroDays
vulnerability.scope	cvssV3Scope
vulnerability.score	score
vulnerability.severity	severity
vulnerability.threatTags	threatTags
vulnerability.userInteraction	cvssV3Ui

Operation options

The Armis connector supports the following operation options. See connector operation options for information about how to apply them.

Table 8: Armis connector operation options

Connector Object	Option	All Possible Values	Description	Example
Alert	query	Any valid Armis Standard Query (ASQ) string	A query written in the Armis Standard Query (ASQ) language. For more information, see Armis ASQ documentation.	Key: `query` Value: `severity:High status:Active !source:"Policy Violation"`. This key and value combination retrieves only active high-severity alerts that are not sourced from policy violations.
Alert Definition	query	Any valid Armis Standard Query (ASQ) string	A query written in the Armis Standard Query (ASQ) language. For more information, see Armis ASQ documentation.	Key: `query` Value: `type:"Vulnerability Alert" !severity:Low`. This key and value combination retrieves only vulnerability alert definitions excluding those with low severity.
Cloud Resource	query	Any valid Armis Standard Query (ASQ) string	A query written in the Armis Standard Query (ASQ) language. For more information, see Armis ASQ documentation.	Key: `query` Value: `!type:Unknown,"Access Point Interface" boundary:"Corporate" connected:true`. This key and value combination excludes unknown types, includes only corporate-boundary devices, and requires connected assets.
Host	query	Any valid Armis Standard Query (ASQ) string	A query written in the Armis Standard Query (ASQ) language. For more information, see Armis ASQ documentation.	Key: `query` Value: `riskLevel:High !type:Printer,"Access Point Interface"`. This key and value combination retrieves high-risk hosts while excluding printers and access points.
Vulnerability	query	Any valid Armis Standard Query (ASQ) string	A query written in the Armis Standard Query (ASQ) language. For more information, see Armis ASQ documentation.	Key: `query` Value: `!cve:CVE-2020-12345 severity:Critical patchStatus:Unpatched`. This key and value combination retrieves critical unpatched vulnerabilities excluding those tied to CVE-2020-12345.
Vulnerability Definition	query	Any valid Armis Standard Query (ASQ) string	A query written in the Armis Standard Query (ASQ) language. For more information, see Armis ASQ documentation.	Key: `query` Value: `vendor:Microsoft cvss:>=8.0 !exploitability:None`. This key and value combination retrieves high-severity Microsoft vulnerabilities that are not marked as non-exploitable.

note

The option keys and values are case-sensitive as they are shown in this documentation.

APIs

The Armis connector uses the Armis API v1. Specifically, it uses the following endpoints:

Table 9: Armis API Endpoints

Connector Object	API Endpoints
Armis Alert	`GET /api/v1/search/`
Armis Alert Definition	`GET /api/v1/search/`
Armis Cloud Resource	`GET /api/v1/search/`
Armis Host	`GET /api/v1/search/`
Armis Vulnerability	`GET /api/v1/search/`
Armis Vulnerability Definition	`GET /api/v1/search/`

Changelog

The Armis connector has undergone the following changes:

Table 10: Armis connector changelog

Version	Description	Date Published
3.0.0	Initial Integration+ release.	June 18th, 2025
